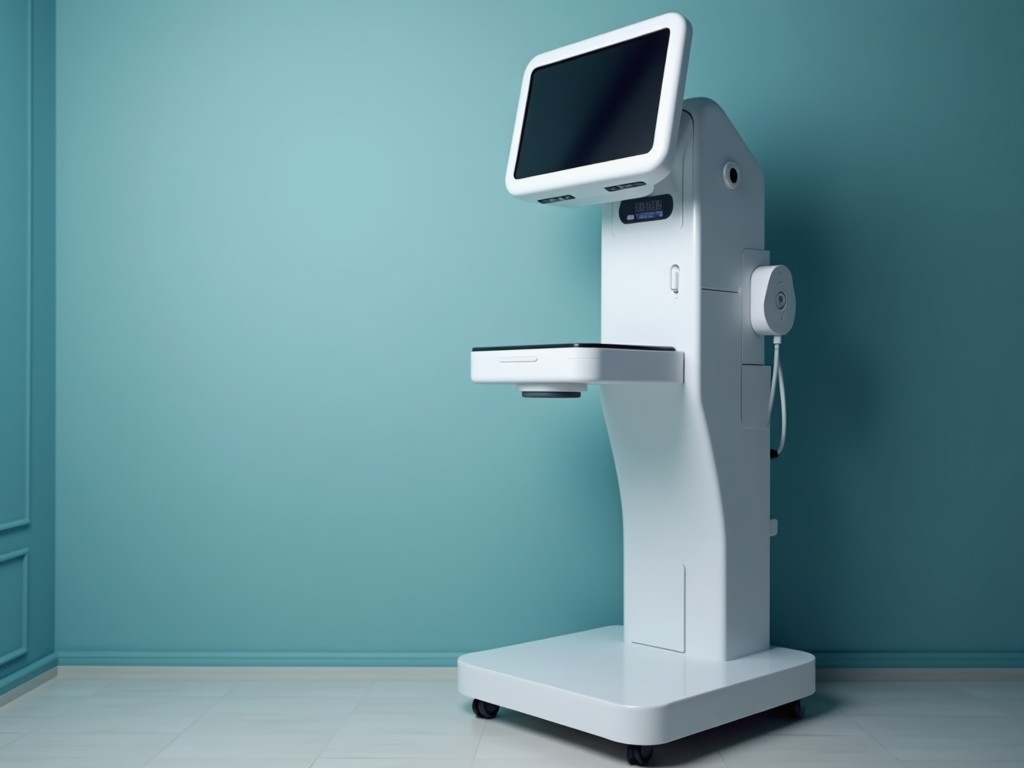

Inquire NowOEM Scale and Body Fat Analyzer
This instrument combines a precision load‑cell scale with multi‑frequency bioelectrical impedance analysis (BIA) to deliver simultaneous weight and body‑composition readings. It is designed for integration into OEM equipment such as fitness kiosks, corporate wellness stations, or medical screening devices where reliable, repeatable data are required.
Measurement is performed by passing low‑amplitude alternating currents through the foot‑to‑foot or hand‑to‑foot path, depending on electrode placement. The device analyses impedance at 5 kHz, 50 kHz, and 250 kHz to estimate total body water, fat‑free mass, and body fat percentage using validated population‑specific equations.
| Parameter | Typical Value | Notes |
|---|---|---|
| Capacity | 0 – 200 kg | Custom ranges available on request |
| Resolution | 0.05 kg | Legal‑for‑trade option |
| BIA Frequencies | 5 kHz / 50 kHz / 250 kHz | Multi‑segment analysis optional |
| Electrode Material | Stainless steel 304 | Corrosion‑resistant, easy to clean |
| Display | 128 × 64 px LCD, optional touchscreen | Custom UI firmware supported |
| Operating Temperature | 0 °C – 40 °C | Indoor use; optional enclosure for harsh environments |
Customization starts with the mechanical interface: load‑cell capacity, platform dimensions, and mounting holes can be tailored to match the host equipment’s footprint. Firmware can be adjusted to output data via USB, RS‑232, or Bluetooth LE, and to apply specific body‑fat equations for different ethnicities or age groups.
The analyzer is suited for environments where regular health monitoring adds value to operational workflows. Examples include:
- Corporate wellness centers that need quick, non‑intrusive body‑composition screens for employee programs.
- Military or law‑enforcement fitness testing stations where rapid, repeatable measurements support readiness assessments.
- Rehabilitation clinics that track changes in fat‑free mass during therapy cycles.
- Public‑access fitness kiosks in retail or transit hubs offering self‑service health metrics.
Quality control follows a documented calibration traceable to national standards. Each unit undergoes a three‑point load‑cell verification and an impedance linearity check across the frequency spectrum before final inspection. Housing materials are selected for resistance to cleaning agents and mechanical wear, reducing long‑term maintenance.
Packaging options include individual foam‑lined cartons for single‑unit shipments or palletized configurations with corner protectors for bulk orders. Each package carries a humidity indicator and shock‑watch label to detect mishandling during transit. Export shipments comply with ISPM‑15 wood‑packaging regulations when applicable.
Frequently Asked Questions
Yes. Foot‑to‑foot, hand‑to‑foot, or hand‑to‑hand configurations are available; new electrode patterns require a new impedance calibration which we can perform.
Provide the desired weight capacity, platform size, output interface, and any custom software features. Environmental conditions (temperature, humidity, exposure to chemicals) help us select suitable enclosure ratings.
Accuracy is expressed as % of reading for weight (±0.1 % typical) and as % of body fat (±2.5 % typical) when compared to reference DXA scans under controlled conditions. Validation reports are available upon request.
Standard configurations ship in 4–6 weeks after receipt of purchase order. Custom firmware or mechanical changes may extend this period; we provide a detailed schedule after technical review.
