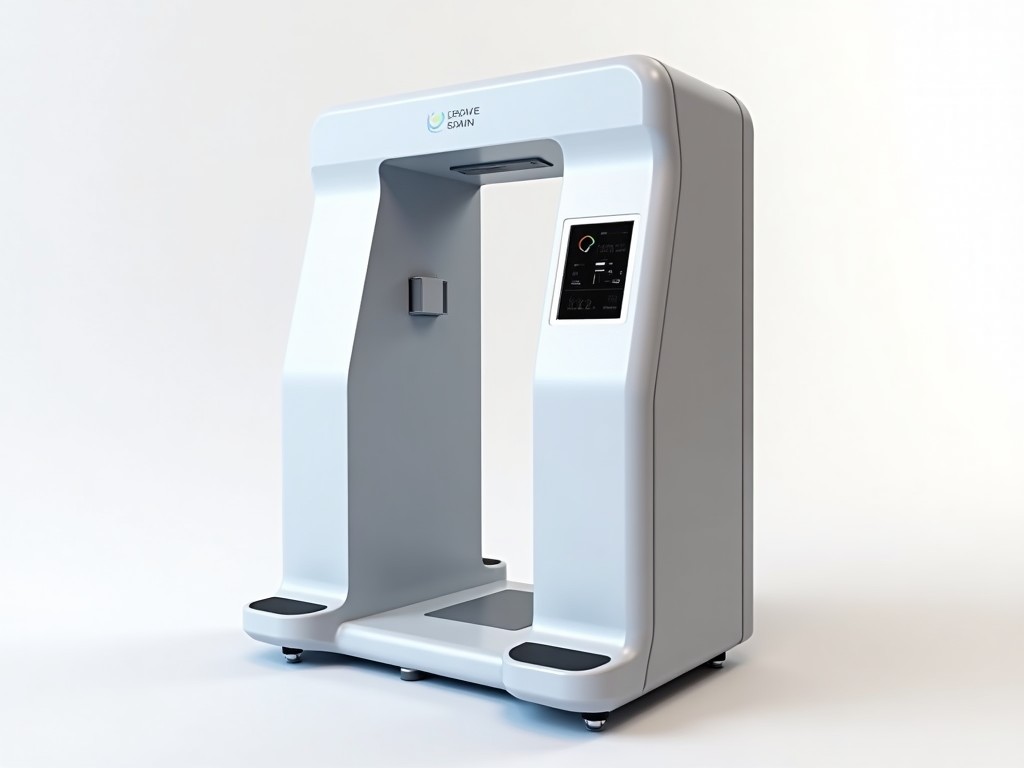

Buy Full Body Composition Analyzer
A full body composition analyzer provides quantitative assessment of body fluids, fat, and muscle using bioelectrical impedance. It supports objective decision making for fitness, clinical, and
Inquire NowBuy Full Body Composition Analyzer
A full body composition analyzer provides quantitative assessment of body fluids, fat, and muscle using bioelectrical impedance. It supports objective decision making for fitness, clinical, and industrial wellness programs.
How It Works
The device sends low‑amplitude alternating currents through segment‑specific electrodes and measures the resulting voltage drop. Multi‑frequency operation (typically 5 kHz, 50 kHz, 250 kHz) separates extracellular and intracellular pathways.
Impedance spectra are converted to body water compartments, fat‑free mass, and visceral fat via validated regression algorithms. Measurement cycles complete in under 30 seconds with subject standing on the platform.
Key Technical Specifications
| Parameter | Typical Value | Customization Options |
|---|---|---|
| Measurement Technology | Multi‑frequency Bioelectrical Impedance Analysis (5‑250 kHz) | Optional 500 kHz channel for enhanced intracellular resolution |
| Weight Capacity | 250 kg | Up to 300 kg available |
| Height Measurement | Ultrasonic sensor, 100‑220 cm | Optional laser triangulation for sub‑centimeter accuracy |
| Impedance Range | 100 Ω – 1000 Ω | Customizable per electrode configuration |
| Body Fat % Accuracy | ±0.5 % vs. DXA reference | Optional calibration kit for ±0.3 % |
| Repeatability | ±0.2 % (same day) | N/A |
| Operating Temperature | 10 °C – 40 °C | Optional extended range –20 °C to 50 °C |
| Power Supply | 100‑240 V AC, 50/60 Hz | Optional DC battery pack (12 V, 7 Ah) |
| Data Output | USB, Ethernet, Wi‑Fi | Optional Bluetooth LE |
| Software Integration | SDK for Windows/Linux | Optional HL7/FHIR interface |
These values represent typical performance under standard laboratory conditions; actual results vary with electrode contact, subject hydration, and ambient temperature.
Industrial Applications
Industrial buyers select this technology because it delivers objective data that supports decision making in various settings where body composition influences performance, safety, or health outcomes.
- Fitness centers – tracking member progress and tailoring training programs
- Medical research – monitoring fluid shifts in dialysis, cardiac, and oncology studies
- Corporate wellness – identifying health‑risk trends and measuring intervention ROI
- Military and first‑responder units – assessing readiness and load‑carriage capacity
Customization and Integration Options
Optional modules expand the analyzer’s capability beyond basic impedance measurement, such as segmental analysis with handheld electrodes or wireless data logging for large‑scale surveys.
Software interfaces can be tailored to existing enterprise systems, including ERP, HRIS, or clinic management platforms, via REST APIs or HL7 messaging.
Quality Assurance and Longevity
The enclosure is constructed from UV‑stabilized ABS polymer rated for impact resistance and easy cleaning in high‑traffic environments.
Electrodes undergo automated wear testing to guarantee consistent contact impedance over the product lifespan, and the unit includes a two‑year limited warranty with traceable calibration records.
Frequently Asked Questions
Can the analyzer be customized for specific electrode placement?
Yes, electrode configuration can be adjusted for segmental or whole‑body modes; contact our engineering team to discuss your requirements.
What information is required for a quotation?
Required details include desired measurement parameters, expected throughput volume, environmental conditions, and any required certifications such as ISO 13485 or FDA registration.
How is the device calibrated?
Factory calibration uses precision resistors and a reference phantom; a field verification kit is available for routine checks to maintain accuracy within specifications.
