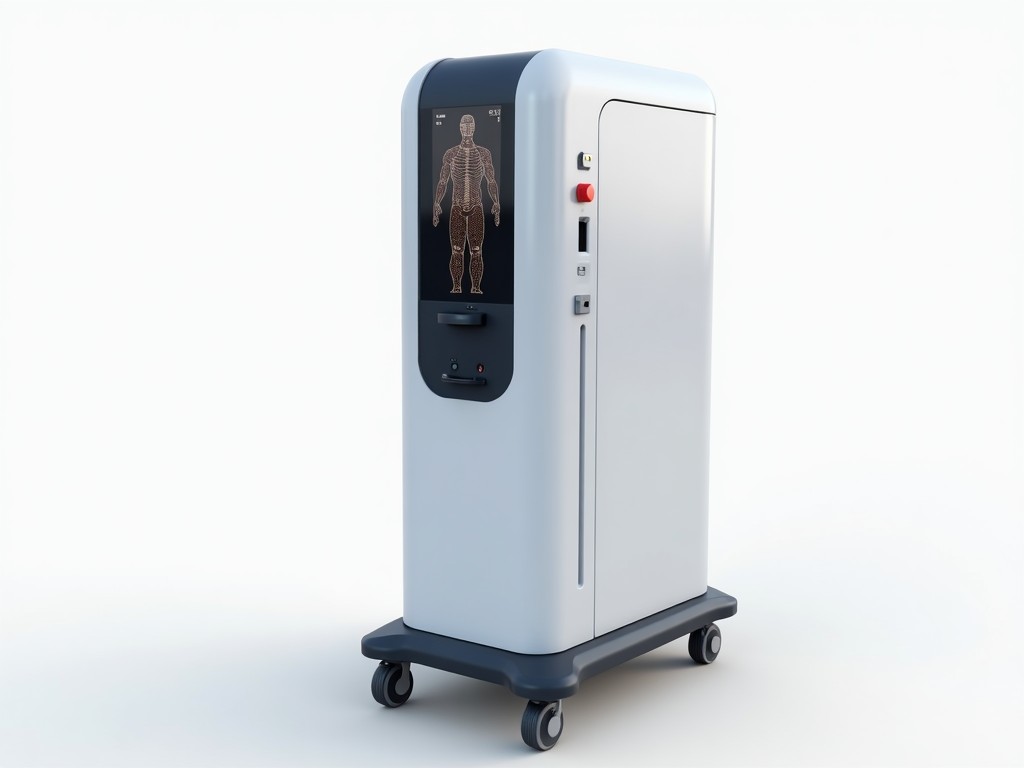

Budget Friendly Medical Body Composition Analyzer Machine

A medical body composition analyzer measures the proportions of fat, muscle, bone, and water in the human body using bioelectrical impedance technology. Devices positioned in the budget tier maintain core measurement accuracy while reducing material and feature complexity, making them suitable for clinics, wellness centers, and smaller hospitals where cost constraints are a primary consideration.

Working Principle

The analyzer sends low‑level alternating currents through electrodes placed on the hands and feet. By measuring the impedance (resistance) encountered at multiple frequencies, the device estimates extracellular and intracellular water volumes, which are then converted into fat‑free mass and fat mass using validated population‑specific equations.

Typical systems operate at frequencies ranging from 5 kHz to 500 kHz, allowing differentiation between water compartments. Electrode contact is managed via disposable adhesive pads or reusable stainless‑steel grips, ensuring consistent signal injection across measurements.

Technical Specifications

Parameter	Typical Value / Range
Measurement Method	Multi‑frequency Bioelectrical Impedance Analysis (BIA)
Frequency Range	5 kHz – 500 kHz (up to 6 frequencies)
Electrode Type	Reusable hand grips + disposable foot pads
Measurement Time	≤ 30 seconds per test
Output Parameters	Body Fat %, Fat‑Free Mass, Total Body Water, Skeletal Muscle Mass, Visceral Fat Level, Basal Metabolic Rate
Weight Capacity	Up to 200 kg
Display	7‑inch LCD touchscreen, 800 × 480 px
Power Supply	AC 100‑240 V, 50/60 Hz, 30 W
Data Interface	USB‑A for export, optional Wi‑Fi module
Operating Temperature	10 °C – 40 °C
Dimensions (W × D × H)	350 mm × 300 mm × 1100 mm

Key Features

• Multi‑frequency BIA improves accuracy across hydration states.
• Segmental analysis optional via additional hand electrodes.
• Touchscreen interface with guided measurement protocol.
• Built‑in thermal printer for immediate result hardcopy.
• Low‑power consumption (< 30 W) reduces operating cost.
• Automatic electrode contact verification prevents faulty readings.

Applications

In outpatient clinics, the analyzer supports nutrition counseling by tracking changes in fat mass and lean mass over therapy cycles. Sports medicine facilities use segmental data to identify muscle imbalances that may predispose athletes to injury. Public health programs deploy the device in community screening events because its rapid test time (< 30 seconds) enables high throughput with minimal staff training.

Research institutions benefit from the exportable raw impedance data, allowing custom analysis scripts for longitudinal studies. The device’s compact footprint (< 0.4 m²) accommodates installation in limited‑space environments such as mobile health vans or small wellness rooms.

Advantages

• Cost‑effective: Bill‑of‑materials optimized for essential measurement functions only.
• Reliable repeatability: Coefficient of variation typically < 2 % for fat‑free mass under standardized conditions.
• User‑friendly: On‑screen prompts reduce operator error, suitable for varying skill levels.
• Scalable: Optional Wi‑Fi module enables integration with electronic medical records without hardware redesign.

Quality and Compliance

Manufacturing follows ISO 13485 quality management principles. Electrical safety conforms to IEC 60601‑1 standards for medical equipment. Electromagnetic compatibility meets IEC 60601‑1‑2 requirements for use in typical clinical environments. Each unit undergoes functional testing of impedance measurement accuracy against reference devices calibrated with known resistance networks.

Materials selected for housings are ABS‑PC blends with flame‑retardant rating UL 94 V‑0, providing durability and resistance to cleaning agents commonly used in medical settings.

Customization Options

• Electrode configurations: reusable hand grips only, or disposable full‑body pads.
• Software language packs: available upon request for regional markets.
• Mounting choices: floor‑standing base, wall‑mount bracket, or mobile cart with lockable casters.
• Report formats: PDF, CSV, or HL7‑compatible output for interfacing with hospital information systems.

Frequently Asked Questions

Can the measurement frequency be adjusted for specific patient populations?

Yes, the device allows selection of preset frequency sets (e.g., 5 kHz/50 kHz/250 kHz for general use, or a higher‑frequency set for edema assessment). Custom frequency sequences can be loaded via USB stick.

What is required before a quotation is issued?

To prepare a quote, we need the intended installation environment (clinic, mobile unit, research lab), desired electrode type, any required software interfaces (HL7, Wi‑Fi), and estimated annual volume for discount tiering.

How is quality inspected during production?

Each unit undergoes impedance linearity testing using precision resistors, visual inspection of electrode contacts, and functional verification of the touchscreen and printer. A final safety test includes leakage current measurement according to IEC 60601‑1.

What packaging methods are available for export shipments?

Standard packaging consists of a double‑wall corrugated carton with internal foam inserts designed to withstand 1.5 m drop tests. Optional wooden crates are available for high‑vibration transport routes.

Contact for Inquiry

To discuss how this budget‑friendly body composition analyzer can fit your facility’s workflow and budget, please reach out to our technical team.
