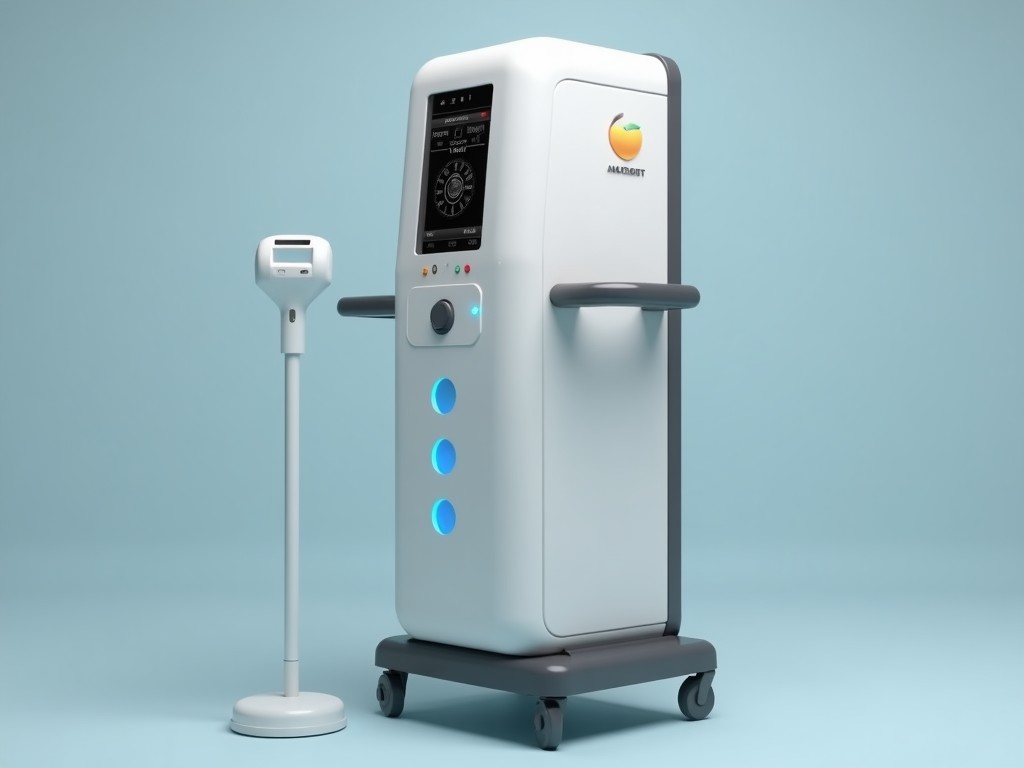

Budget Friendly Body Composition Analyser Machine Supplier
The analyser measures body fat percentage, muscle mass, and water content using bioelectrical impedance analysis (BIA) at multiple frequencies. Electrodes placed on hands and feet pass a
Inquire NowBudget Friendly Body Composition Analyser Machine Supplier
The analyser measures body fat percentage, muscle mass, and water content using bioelectrical impedance analysis (BIA) at multiple frequencies. Electrodes placed on hands and feet pass a low‑amplitude alternating current, and the device calculates impedance values to derive composition metrics. Accuracy depends on electrode contact, subject hydration, and algorithm calibration.
Working Principle
BIA sends a safe, alternating current (typically 50 kHz) through the body. Impedance is inversely related to the amount of conductive tissue, primarily water‑rich lean mass. By measuring resistance and reactance at single or multiple frequencies, the device separates extracellular and intracellular water compartments, enabling estimation of fat‑free mass and fat mass.
Key Technical Parameters
| Parameter | Typical Value | Notes |
|---|---|---|
| Measurement Frequencies | 1, 5, 50, 250 kHz | Multi‑frequency improves fluid compartment separation |
| Current Amplitude | ≤ 0.8 mA RMS | Within IEC 60601‑1 safety limits |
| Electrode Type | Surface‑contact, reusable Ag/AgCl | Standard size 50 mm × 30 mm |
| Display Resolution | 0.1 % for fat, 0.1 kg for mass | LCD with backlight |
| Power Supply | 100‑240 V AC, 50/60 Hz, 15 W | Internal switch‑mode adapter |
| Operating Temperature | 10 °C – 40 °C | Non‑condensing |
Typical Applications
Fitness centres use the analyser to track member progress and tailor training programmes. Clinics employ it for nutritional assessment and monitoring of patients undergoing dialysis or chemotherapy, where fluid shifts affect composition. Corporate wellness programmes deploy the device for periodic health screenings, providing objective data for risk stratification.
Construction Materials
The housing is fabricated from ABS‑PC blend, offering impact resistance and a smooth surface for cleaning. Internal circuitry uses FR‑4 PCB with copper thickness of 35 µm, ensuring reliable signal transmission. Electrodes are coated with silver‑silver chloride to maintain stable impedance over repeated use.
Quality Assurance Process
Each unit undergoes a four‑step test: (1) electrical safety verification per IEC 60601‑1, (2) impedance accuracy check against a precision resistor network, (3) repeatability measurement on a phantom limb with known composition, and (4) software validation of output algorithms. Only devices passing all stages receive a release tag.
Customization Options
- Electrode cable length adjustable from 0.5 m to 2.0 m
- Optional Bluetooth module for data export to mobile apps
- Custom logo printing on the front panel (screen‑printed)
- Alternative electrode shapes (oval, rectangular) for specific placement protocols
Frequently Asked Questions
Can the measurement frequency be changed?
The analyser operates at a fixed set of frequencies optimized for segmental analysis. Custom frequency configurations are available as a firmware option upon request.
What information is required before quotation?
Buyers should specify required electrode type, desired connectivity (USB, Bluetooth, none), order quantity, and any branding or packaging preferences. This enables accurate cost estimation.
How is quality inspected?
Each unit receives a full functional test, safety verification, and visual inspection. Inspection records are retained for traceability and can be shared with customers.
Next Steps
For detailed specifications, pricing, or to request a sample unit, contact our sales team via the inquiry link below.
